MSI B760M GAMING PLUS WIFI
The MSI B760M GAMING PLUS WIFI is a high-performance micro-ATX motherboard designed for Intel 12th, 13th, and 14th Gen processors on the LGA 1700 socket. Engineered for gamers and PC builders, it features advanced DDR5 memory support (up to 6800+ MHz OC), dual Lightning Gen 4 M.2 slots with thermal
For more information contact info@gpuvendor.com
Specifications
| Supported Processors | Intel Core 14th, 13th, and 12th Gen (LGA 1700) |
|---|---|
| Form Factor | Micro-ATX (mATX) |
| Memory Compatibility | DDR5 Dual Channel (up to 4 DIMMs, 256GB max) |
| Memory Speed Boost | 6800+ MHz (Overclocked via XMP 3.0) |
| Power Design Architecture | 12+1+1 Duet Rail Power System with 8+4 pin CPU connectors |
| Primary GPU Expansion | 1x PCIe 4.0 x16 slot featuring MSI Steel Armor |
| M.2 Storage Speed | 2x Lightning Gen 4 x4 slots (up to 64Gbps) |
| M.2 Thermal Management | Onboard M.2 Shield Frozr heatsink |
| SATA Infrastructure | 4x SATA 6Gb/s ports (supports RAID 0, 1, 5, 10) |
| Wireless Technology | Intel Wi-Fi 6E (2.4G, 5G, and 6GHz bands) + Bluetooth 5.3 |
| Wired Data Network | Realtek 2.5Gbps Super LAN |
| External USB Hub | USB 3.2 Gen 2 (10Gbps) Type-A + Front Panel USB Type-C headers |
| Display Layout Outlets | 2x HDMI 2.1 + 2x DisplayPort 1.4 |
| Audio Engine System | Realtek ALC897 7.1-Channel HD Audio with Audio Boost |
| Hardware Diagnostic Indicators | Built-in EZ Debug LEDs (CPU, DRAM, VGA, BOOT status) |
Overview
The MSI B760M GAMING PLUS WIFI is a high-performance micro-ATX motherboard designed for Intel 12th, 13th, and 14th Gen processors on the LGA 1700 socket. Engineered for gamers and PC builders, it features advanced DDR5 memory support (up to 6800+ MHz OC), dual Lightning Gen 4 M.2 slots with thermal cooling, ultra-fast Intel Wi-Fi 6E, and a 2.5G LAN controller. With a robust 12+1+1 power delivery system and a reinforced PCIe 4.0 x16 slot, it provides the ultimate stability, speed, and premium connectivity required for modern gaming rigs.
More components
View all →
Supermicro 80mm Hot-Swap Fan Module

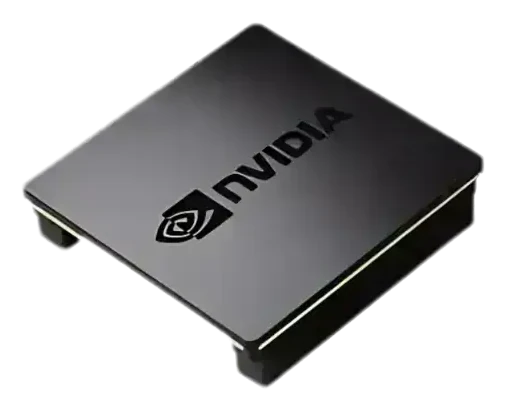

NVIDIA NVLINK Bridge 2-WAY 3-SLOT x16

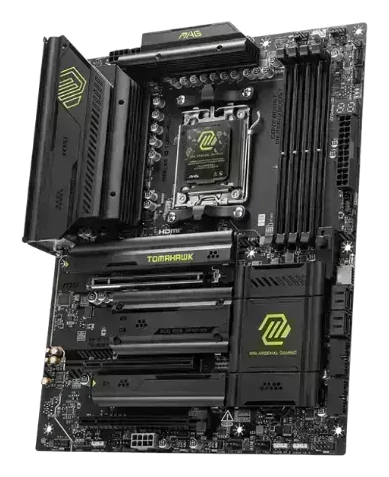

MSI MAG X870 Tomahawk WiFi Gaming Motherboard
